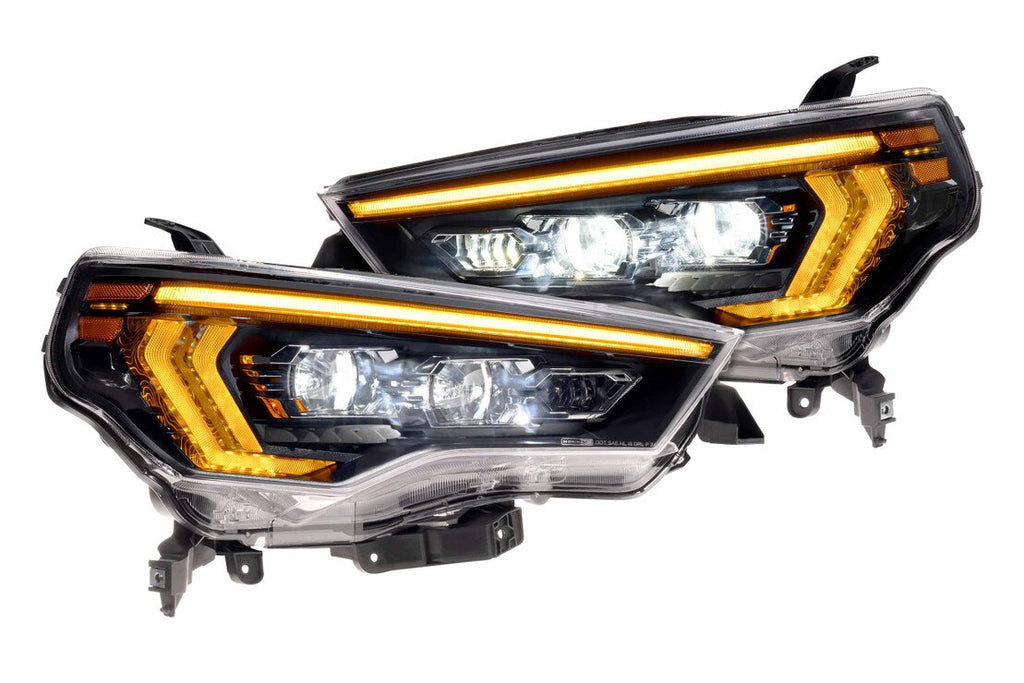

Toyota 4Runner XB Evo LED Headlights 14-24

Specs

• Traffic Pattern : LHD / Right Hand Traffic Only

• Output (Standard Drivers) : DOT (FVMSS108) Compliant (LB2V and UB2)

• Output (Supercharged Drivers) : Non-Compliant

• Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)

• High Beam Assist : 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)

• Functions : Low, High, Park, Turn, DRL, Welcome, and Lens Heating

• Turn Signal Modes : Sequential or Fade Off (Integrated)

• DRL Colors : White or Amber (Integrated)

• DRL/Signal Optics : Glass-like 3D TIR Optics with Topography sidewall pattern

• Frost-Free System : Logic Controlled 50W Ceramic w/ circulation fans

• Internal Finish : Two-Tone Piano Black and Titanium w/ contrasting textures

• Side marker : Amber side reflex reflector (DOT compliant)

• Wiring : Plug n Play for all sub-models within model year range

• Lens Details : Polycarbonate with UV-Shield Hard coating (Exceeds OE Toyota benchmark)

Compatibility

• Toyota 4Runner : 2014-2024 (All*)

• Replaces Toyota Part # : 81170-35571, 81170-35570, 81070-35600, 81070-35610, 81130-35541, 81140-35610, 81140-35620

• Compliance : Meets all DOT, SAE and FMVSS108 Standards*

• Supercharged Drivers : LF2-DRVSC8*

• *NOTE : If your truck has factory Bi-LED headlights, you must not use the factory high beam connectors. Blank caps are included and must be installed.

• *NOTE : Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.

• NOTE : These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.

What's Included

• Headlights : 1x Passenger Side / RH XB Evo Headlight, 1x Driver Side / LH XB Evo Headlight

• Function Selectors : 8x (Four Pairs) For DRL and Turn Signal Settings

• Accessories : 2x Halogen Adapters, 2x OEM LED Adapters, 2x Magnet Mount Resistors, 2x High Beam Connector Caps, 1x DRL Harness, 1x DRL Harness Extension, Fuse Tap Hardware

Warranty Information

This Morimoto product includes a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.

Note: this item may ship direct for the manufacturer.
