Toyota Tacoma XB Evo LED Headlights 16-23
$1,649.00
Skip to product information
Toyota Tacoma XB Evo LED Headlights 16-23
$1,649.00
Specs
-
Traffic Pattern : LHD / Right Hand Traffic Only
-
Output (Standard Drivers) : DOT (FVMSS108) Compliant (LB2V and UB2)
-
Output (Supercharged Drivers) : Non-Compliant
-
Main Optics : 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
-
High Beam Assist : 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)
-
Functions : Low, High, Park, Turn, DRL, Welcome, and Lens Heating
-
Turn Signal Modes : Sequential or Fade Off (Integrated)
-
DRL Colors : White or Amber (Integrated)
-
DRL/Signal Optics : Glass-like 3D TIR Optics with Topography sidewall pattern
-
Frost-Free System : Logic Controlled 50W Ceramic w/ circulation fans
-
Internal Finish : Two-Tone Piano Black and Titanium w/ contrasting textures
-
Side marker : Amber side reflex reflector (DOT compliant)
-
Wiring : Plug n Play for all sub-models within model year range
-
Lens Details : Polycarbonate with UV-Shield Hard coating (Exceeds OE Toyota benchmark)
Compatibility
-
Toyota Tacoma : 2016-2023 (SR, SR5, TRD Sport, TRD Off-Road, Limited, Trail Special Edition, and TRD Pro)
-
Compliance : Meets all DOT, SAE and FMVSS108 Standards*
-
Supercharged Drivers : LF2-DRVSC9*
-
*NOTE : Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.
-
NOTE : These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.

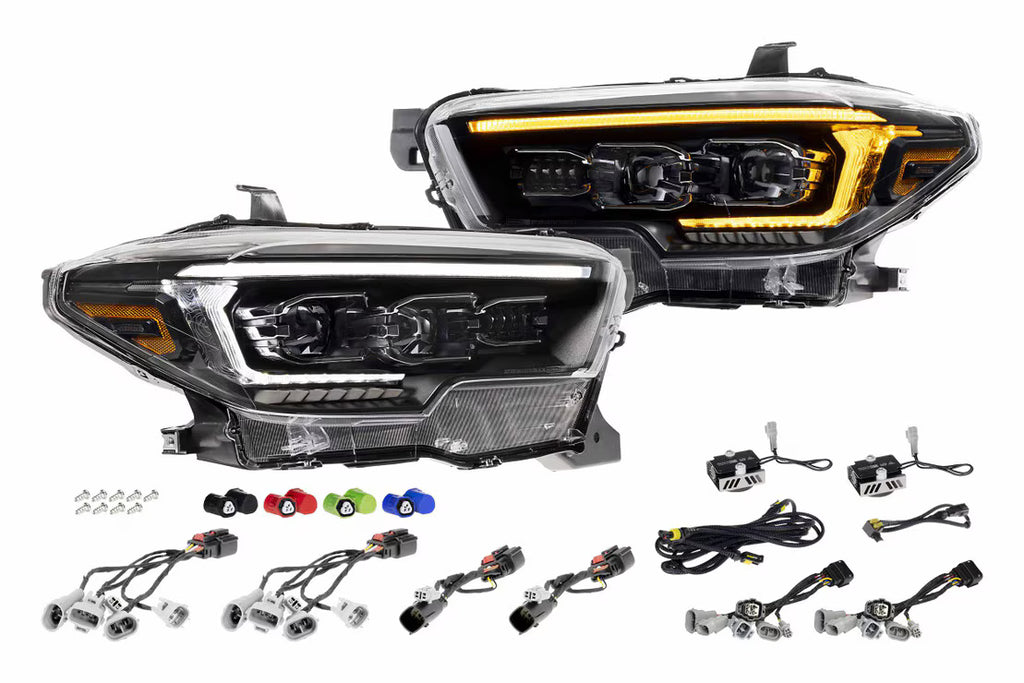

What's Included
-
Headlights : 1x Passenger Side / RH XB Evo Headlight, 1x Driver Side / LH XB Evo Headlight
-
Function Selectors : 8x (Four Pairs) For DRL and Turn Signal Settings
-
Accessories : 2x Halogen Adapters, 2x OEM LED Adapters, 1x DRL Harness, 2x Magnet Mount Resistors, 1x DRL Harness, 9x Screws, Fuse Tap Hardware
Warranty Information
This Morimoto product includes a Five (5) Year limited warranty, serviced and supported by the Morimoto team in Atlanta, GA. This warranty does not cover modifications, alterations, or misuse.
Note: this may ship direct from the manufacturer.
